Mil MI-24A Hind Zvezda 1/72, kit # 7273

Building Mil MI-24A Gunship helicopter  1/72, kit # 7273, scale model

How to build Mi-24A , helicopter scale model


Zvezda's line of 1/72nd scale Mi-24s offers the best kit in this scale. There are quite a lot of details provided which is a great base even for hyper detailing.
I wasn't intending to go that far and just picked a few low spots on the kit where to put some extra detail.

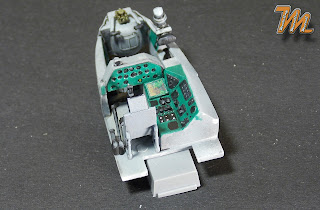

   The cockpit have the basic architecture well captured. Unfortunately instruments, knobs and other bits are provided only as decals. Here you can see my attempt at scratch building some details

Mi-24A cockpit, scale model  Mi24A instrument panel, scale model,  Mi-24A cockpit, scale model

After I decided that what was done in the interior was enough i started the painting process.
  I started wit overall "Light Ghost Gray" from Lifecolor. All raised detail were highlighted with mixture of gray and white. I also did some scuffs and chips with other types of gray. Finally to obtain dusty appearance i gave the lower surfaces a rub with powdered dry pastel in earth color with stiff brush.
   In the cargo area for the ceiling padding and seat fabric painting I used various shades of Vallejo 70847 "Dark sand".
    For the cockpit I made my own mixture for "Emerald green".

This is what I end up with:

Mi-24 A, scale model, interior

Interesting reads and references about the Mil Mi-24 Hind




*Click on the pictures to enlarge them

How to build Mi 24 A cockpit, scale model   Mi24A cockpit, scale model Mi 24 A interior, scale model   Mi-24A cockpit, scale model Mi24A cockpit, scale model   Mi-24A interior, scale model
Mi-24A cockpit, scale model  Mi24A cockpit, scale model Mi-24A cockpit, scale model  Mi24A interior, scale model

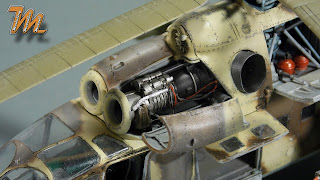

   I decided that I will build this with all openable hatches and doors on the left opened, and everything on the right side closed. In the engine bay all on the right is detail painted.

Mi-24A, scale model, engine bay Mi24A, scale model, engine bay

  The inside of the canopy was masked and painted as well as the outisde

Mi-24A, scale model

  When assembling the fuselage halves one have to be very careful. Quite a lot is going on inside and it may cause trouble. My advice is to dry fit and adjust until fuselage halves close without resistance.
  Generally the fit is excellent with a lot of  alignment and fixing aid provided from the manufacturer.
  After assembly the model was degreased and ready for primer. For priming I used AK Interactive 177 - White primer. For this product make sure you cleaned your model good, otherwise some beading may occur. Primer went on fine and with smooth finish.
  Riveting followed after the primer was given time to fully cure. All went OK except some areas where I needed to sand. I tried to wetsand but that literally washed the primer away. So have this in mind.

Mi24A, scale model  Mi-24A, scale model

  Some handles from copper wire were added and I also upgraded the rocket launcher.

Mi24A, scale model  Mi-24A, scale model

Here the camo scheme is mapped. I was going for "Afgan" bird.

Mi-24A, scale model  Mi24A, scale model

  For the "belly" I mixed some blueish gray and sprayed it on. Then it was post faded with lighter shade. To protect it from further over spray I wrapped it in Tristar masking tape.

Mi-24A, scale model, zvezda models  Mi24A, scale model

  First layer of camo was with Vallejo 70847 "Dark sand".

How to build Mi-24A, scale model  Mi24A, scale model

  Then it was faded with lighter shade of the base color.

Mi-24A, scale model  Mi24A, scale model

 From the instructions I scaled and printed the camo pattern. Then I cut the masks and attached them to the model with UHU Tack.

Mi24A, scale model  How to build Mi-24A, scale model

  The second camo color was Vallejo 71038 "Camouflage Medium Brown". It was also faded with lighter shade.

Mi24A, scale model

  I was not happy with the result after taking the masks down so i went for freehand feathering of the edges.
  Later chipping was added with gray color.
  All was followed with Mr. Color GX100 "Super clear III" cut with Mr. Hobby Self leveling thinner.

Mi24A, scale model  Mi-24A, scale model

  Kit decals are straight awful. Not only they had severe yellowing but were behaving very badly under softening and setting solutions. That's why I used only left and right insignia. I weathered them using the base colors and sponge.
  With AK Interaktive 2032 "Shaft grease" I did panel line wash.

Mi-24 A, scale model  Mi-24 A, scale model

  For the underside I added some streaking.

Mi-24 A, scale model

  The rotor hub was enhanced with some wires and the blades were painted with AK 135 "Olive drab light base" and faded with AK 136 "Olive drab highlights.
  Everything was sealed with MIG/AMMO "Satin clear" than I added exhaust staining with mix of the satin clear and black paint.

Some awesome Mil Mi-24 kits here:

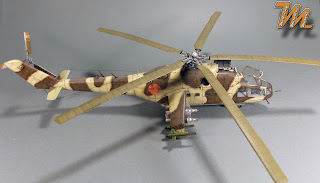

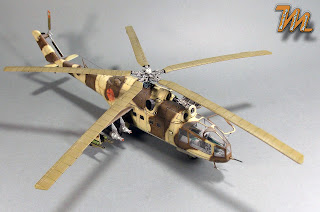

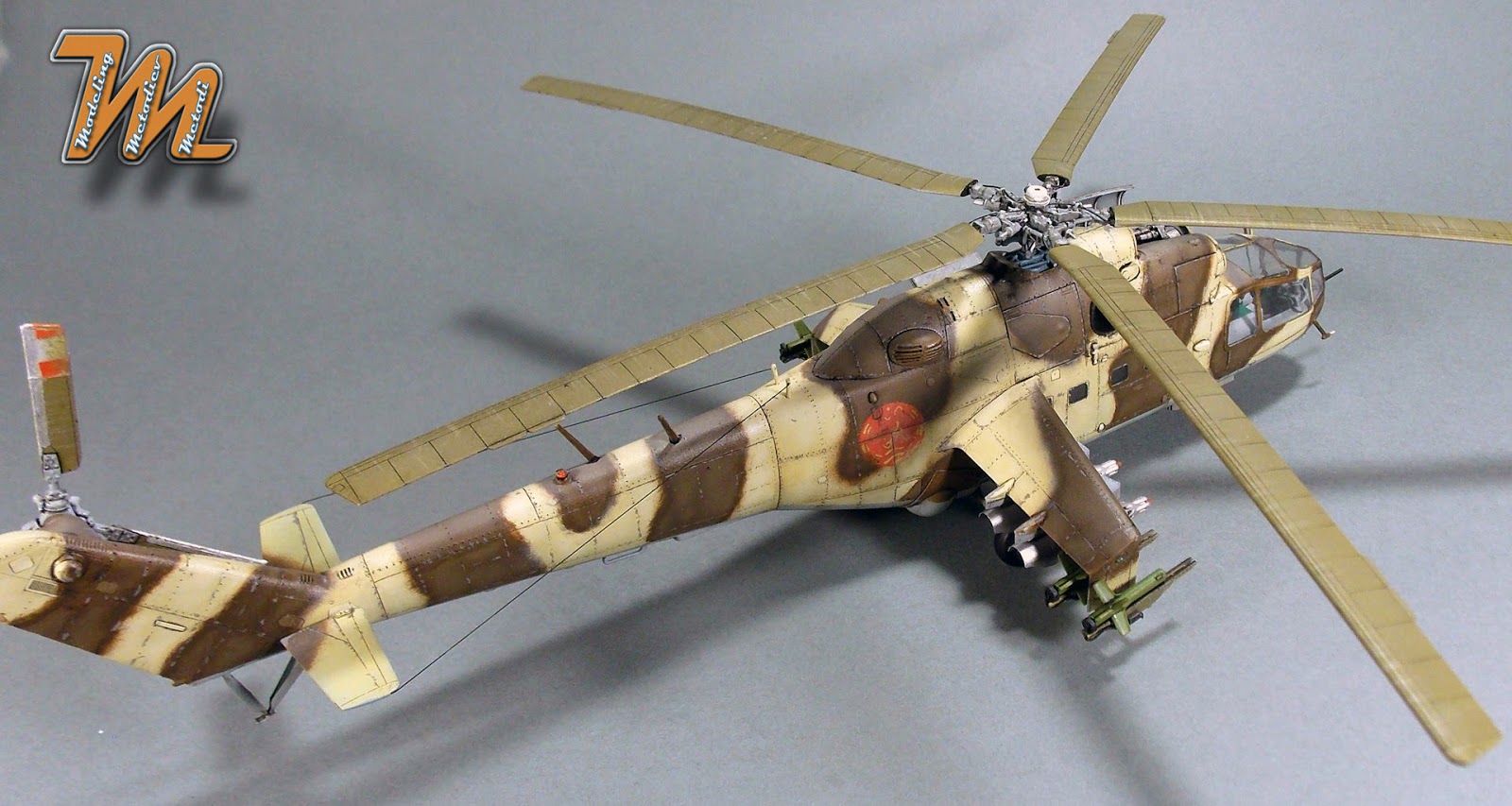

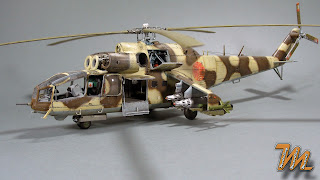

And finally it is completed.
This Mil MI-24A build was featured in issue 65 of MENG AIR Modeller magazine.

*Click on the pictures to enlarge them
Mi-24 A, scale model  Mi-24 A, scale modelMi-24 A, scale model  Mi-24 A, scale modelMi-24 A, scale model  How to build Mi-24 A, scale model
Mi-24 A, scale model

Mi-24A, scale model  Mi-24 A, Zvezda 1/72Mi-24 A, Zvezda 1/72  Mi24A, scale modelMi-24 A, scale model  Mi-24 A, scale model How to build Mi-24 A, scale model  Mi-24 A, scale modelMi-24 A, scale model  Mi-24A, scale model

I hope you enjoyed my article.
With my best regards.
Happy modeling.
